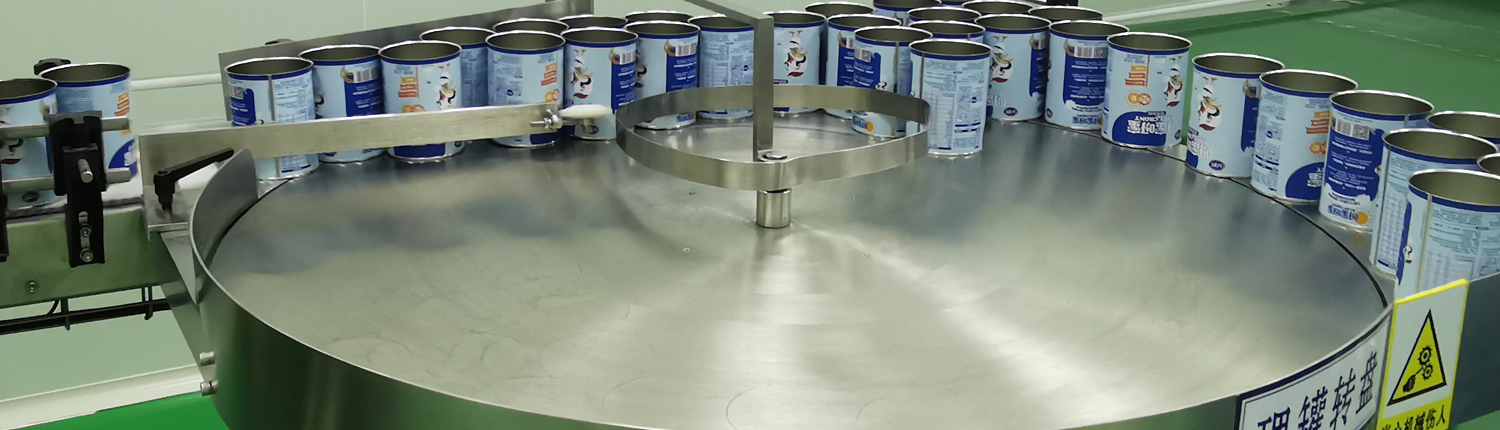

Turnable Table

The device can automatically arrange the empty cans  or bottles into a line which is widely used in food, medicine, grain, chemical industry and other industries.

The equipment has the following characteristics:

– The structure is simple and convenient for maintenance.

– Easy to operate, one key start and stop.

– It can be adjusted flexibly to meet the different sizes of empty cans or bottles.

 Turntable diameter Φ1000/Φ1200mm
 Applicable tank specifications Diameter Φ75~Φ150mm, height 80~200mm
 Can unscramble capacity 10~80 cans/min
 Work height  850±50mm
 power supply  380V    50Hz
 Total power  0.18KW
 Total Weight  100kg
