Can Seamer
Can Seamer involving transmission,material science,automation technology, manufacturing technology and other fields.
This machine can automatically seal the can,and support most standard can including 502/401/307/300.
- Reasonable design,less space ocupption,and can prevent external pollution when working
- It support the function of vacuum pumping and nitrogen filling,and also support disable these functions through screen setting.
- It is easy to operate,and all main parameters can be setting
- It is easy to chang the moudle for suitting the new can.
- We provide you with some functions to choose from, such as Vacuum pumping or Nitrogen filling
Specifications
| Model | S1 | SV1 | SV2 |
| Function | Sealing | Sealing;Vacuum Pumping;Nitrogen Filling | |
| Structure of Sealing | 1-head | 1-head | 2-head |
| Capacity | 20~30 per minute | 6~8 per minute | 10~16 per minute |
| Residual Oxygen | Null | ≤3% | |
| Compressed Air | 0.5~0.8MPa Clean Air 1M3 per hour | 0.5~0.8MPa Clean Air 2M3 per hour | |
| Nitrogen Purity | Not Request | ≥99% | |
| Nitrogen Consumption | Null | 4M3 per hour | 8M3 per hour |
| Total Power | 1.5KW | 4KW | 8KW |
| Overall Size | 2000×900×1600 | 1800×760×1850 | 2200×1050×1900 |
| Total Weight | 400kg | 900kg | |
Common Applications

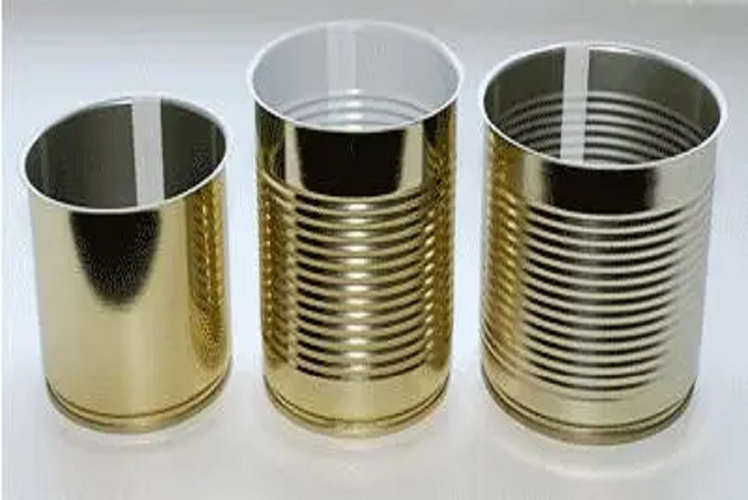

Can

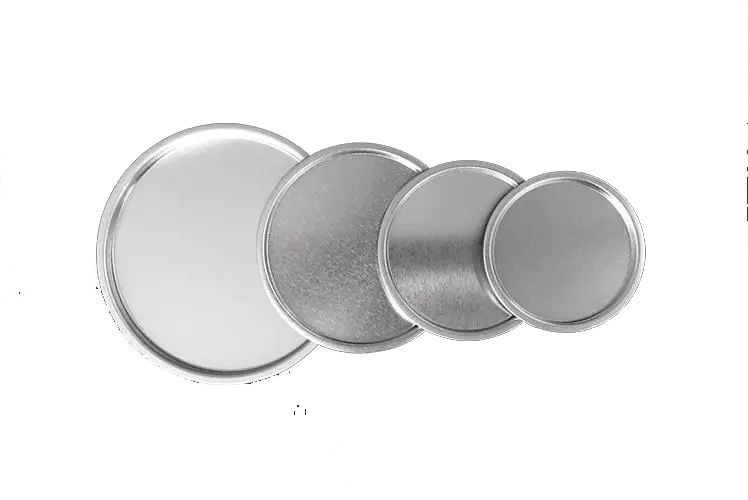

Lid

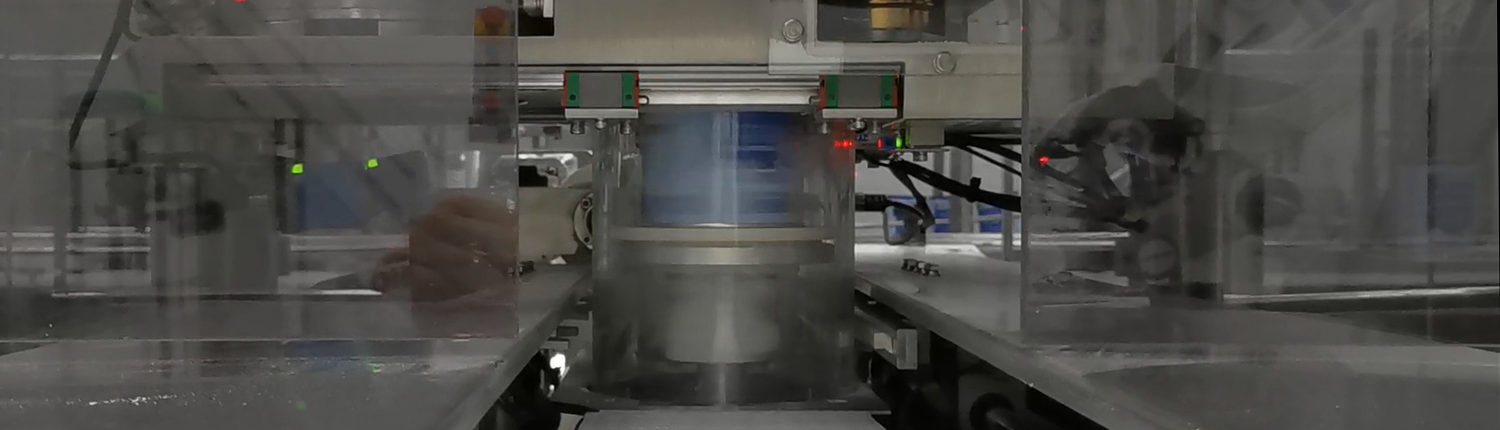

Video
