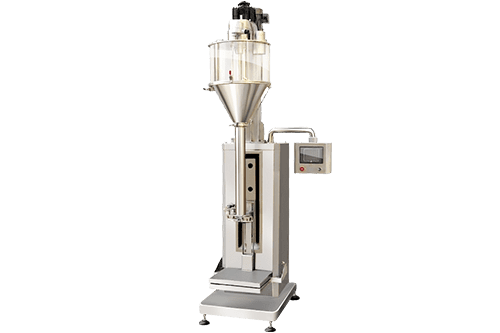

When using this machine to fill, it can minimize dust overflow pollution.
The operator attaches the bag onto a mounting clip. When the empty bag is in place, a tare weight is established. A electric lift then lifts the empty bag from the scale to its bulk-fill position . A bottom-up fill occurs, ensuring that the amount of dust caused by the product in motion will be minimized. As the bulk fill is in progress, the lift lowers to the scale at a slower speed. A bulk weight is taken at the scale. The lift then raises back up and the bottom-up dribble fill commences. The lift again lowers to the scale, and a final weight is taken. If it is underweight, a second dribble fill occurs.
The scale also has a “real-time” weight function to guarantee flexibility and accuracy.
Specifications
Model | AF-1C3-A | AF-1C3-B |
Range | 200g-10kg | 1-50kg |
Accuracy | 100-1000g,±2g;1~50kg,≤0.2% | |
Speed | 5-30bag/min | 5-25bag/min |
Power Supply | 380V 50-60Hz | |
Total power | 2.5KW | 3kw |
Overall Weight | 400kg | 450kg |
Overall Volume | 1050x900x2350mm | 1150x1000x2550mm |
Tank Volume | 70L | 110L |
Common Applications

Breadcrumb

Brown-Sugar

Cake-Mix

Cat Litter

Cement-Powder

Chia-Seeds

Cocoa-Powder

Cosmetics Powder

Curry-Powder

Detergent-Powder

Fennel Grass-Seeds

Food Powders

Grains

Ground Spices

Infant Formula

Jimmies Sprinkles

Lentils-Seeds

Matcha-Powder

Pancake-Mixpng

PepperGround Pepper

Plant Foods

Plastic Granules

Protein-Powder

Rice-Powder

Salt-Products

Seeds

small Pet Food

Sugar

Toner Powder

Turmeric-Spices

wholeGround-coffee

Milk Powder
