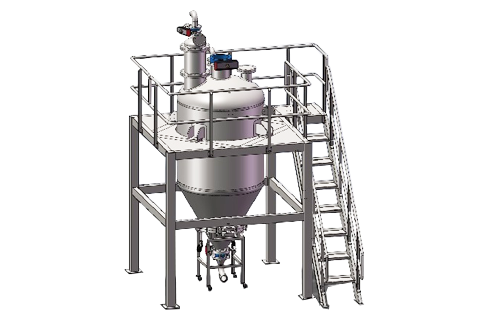

Pneumatic mixing conveyor technology involves pressure vessels, fluid mechanics, material science, automation technology, manufacturing technology and other fields, and is a high-tech project. It is suitable for food, medicine, grain, chemical and other industries. It is an advanced technology suitable for mixing and conveying various powder or small particles.
Specifications
| model | PM-0.18 | PM-0.38 | PM-1.2 | PM-2.3 | PM-3.5 |
| Mixing tank volume | 0.18m³ | 0.38m³ | 1.25m³ | 2.35m³ | 3.55m³ |
| Mixed filling factor | 0.1~0.6 | ||||
| 0.02～0.11m³ | 0.04～0.23m³ | 0.12～0.75m³ | 0.23～1.4m³ | 0.35～2.1m³ | |
| Mixed media | Powder, small particle materials | ||||
| Feeding method | Free falling/manual feeding/negative pressure suction | Free fall | |||
| Discharge method | Positive pressure dense phase conveying | ||||
| Equipment weight
Tank/frame (platform) |
240/90KG | 280/140KG | 650/500KG | 900/600KG | 1500/1200KG |
| Frame/platform size(mm) | 1100×950×1200 | 1200×1000×1450 | 2600×1900×2000 | 2900×2300×2400 | 3300×2500×2900 |
| Total height of equipment | 2350mm | 2700mm | 3800mm | 4300mm | 4800mm |
| Diameter of mixing tank | Φ600 | Φ750 | Φ1050 | Φ1300 | Φ1450 |
| Top main feed port size | DN150(Φ159) | DN150(Φ159) | DN200(Φ219) | DN250(Φ273) | DN200(Φ219) |
| Bursting disc pressure relief port size | DN50(Φ60) | DN50(Φ60) | DN50(Φ60) | DN65(Φ76) | DN65(Φ76) |
| Top auxiliary feed inlet size | DN150(Φ159 | DN150(Φ159) | |||
| Side vacuum suction port size | DN50(Φ60) | DN50(Φ60) | DN65(Φ76) | DN80(Φ89) | |
| Bottom discharge port size | 2.5″(Φ63)Quick connector | 3″（Φ76）Quick connector | 3″（Φ76）Quick connector | 3.5″（Φ89）Quick connector | 4″（Φ102）Quick connector |
Common Applications
Breadcrumb
Brown-Sugar
Cake-Mix
Cat Litter
Cement-Powder
Chia-Seeds
Cocoa-Powder
Cosmetics Powder
Curry-Powder
Detergent-Powder
Fennel Grass-Seeds
Food Powders
Grains
Ground Spices
Infant Formula
Jimmies Sprinkles
Lentils-Seeds
Matcha-Powder
Pancake-Mixpng
PepperGround Pepper
Plant Foods
Plastic Granules
Protein-Powder
Rice-Powder
Salt-Products
Seeds
small Pet Food
Sugar
Toner Powder
Turmeric-Spices
wholeGround-coffee
Milk Powder
