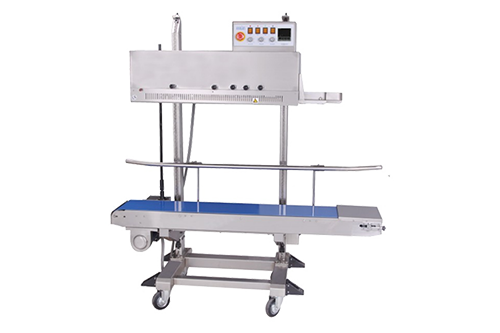

Heat Band Sealer

Heat Band Sealer

This sealer can seal plastic films made from various materials, which is widely applied in the fields of food, medicine, chemicals, commodities and agriculture, etc. It is ideal sealing equipment for packing batch products in factories and shops.

Model HB1 HB2
Voltage(V/Hz) AC220/50110/60
Motor   power(W) 200
Sealing  power(W) 400×2 400×4
Printing Heating Power(W) 40×2
Sealing  speed(m/min) 0-10
Sealing  width(mm) 10
Temperature control range(℃) 0-300(Stepless adjustable)
Printing type Solid-Ink Coding Printing
Distance from sealing center to conveyor(mm) 100-700
Max.distance from sealing center

to  Bag  Opening(mm)

Conveyor   Size(L×W)(mm) 1430×250 1600×250
Max.overall loading of conveyor


External dimensions


1430×680×1570 1631×550×1570
Net  weight(Kg) 136 150
