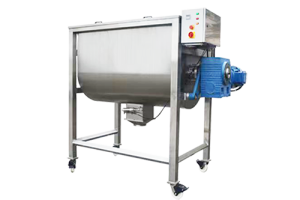

The horizontal spiral ribbon mixer is composed of spiral ribbon rotating parts; the outer spiral gathers materials from both sides to the center, and the inner spiral conveys the materials from both sides of the center to form convective mixing. The ribbon mixer has a good effect on the mixing of viscous or cohesive powders and granules. This equipment can quickly complete the mixing of powder or small particles, and is widely used in food, medicine, grain, chemical and other industries.
Specifications
| model | ARM-0.25 | ARM-0.5 | ARM-1 | ARM-2 |
| Full volume | 0.25m³ | 0.5m³ | 1m³ | 2m³ |
| Loading factor | 0.4~0.8 | |||
| Mixing capacity | 100～200L/Second-rate | 200～400L/Second-rate | 400～800L/Second-rate | 800～1600L/Second-rate |
| Dimensions | 1700x1000x1800mm | 2500×900×2000mm | 2600×900×2100mm | 2700×1300×2800mm |
| power supply | 380V 50Hz | |||
| Total power | 3.7kw | 4kw | 5.5kw | 11kw |
| Equipment weight | 400kg | 600kg | 700kg | 1500kg |
